可视化神器--Plotly Express

Plotly Express 是一个新的高级 Python 可视化库：它是 Plotly.py 的高级封装，它为复杂的图表提供了一个简单的语法。
用 pip install plotly_express 命令可以安装 Plotly Express。

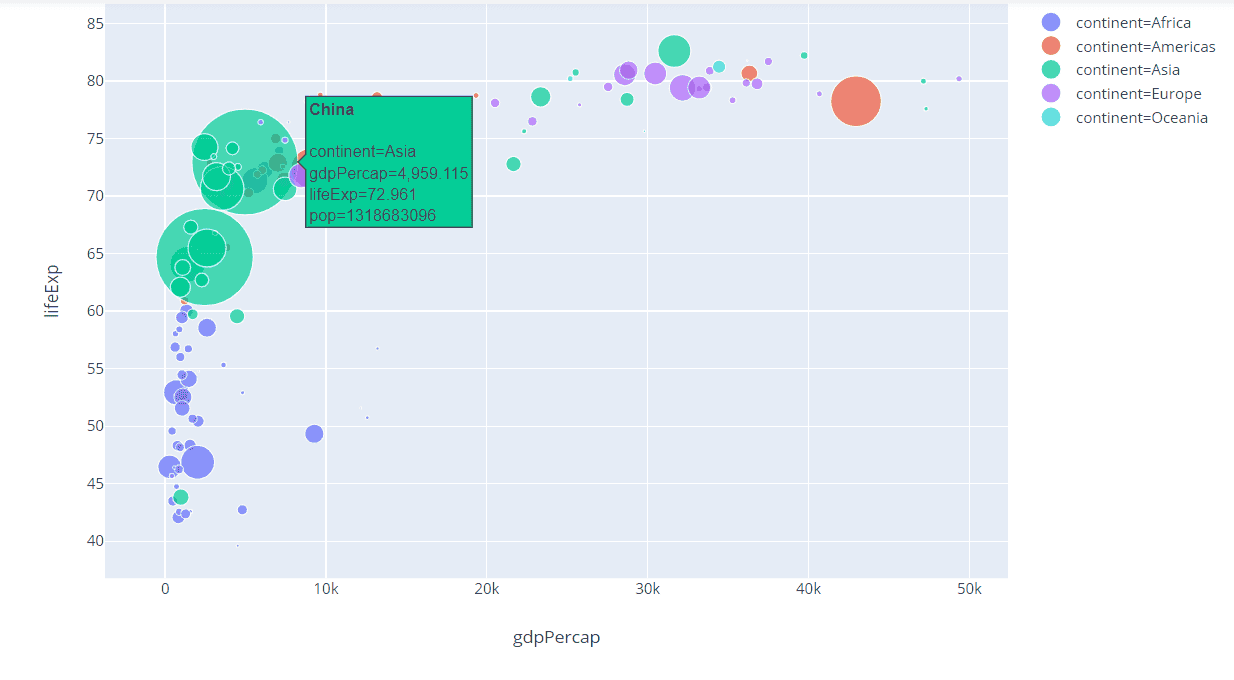

import plotly_express as pxpx.scatter(gapminder2007, x='gdpPercap', y='lifeExp',color='continent',size='pop',size_max=60,hover_name='country')

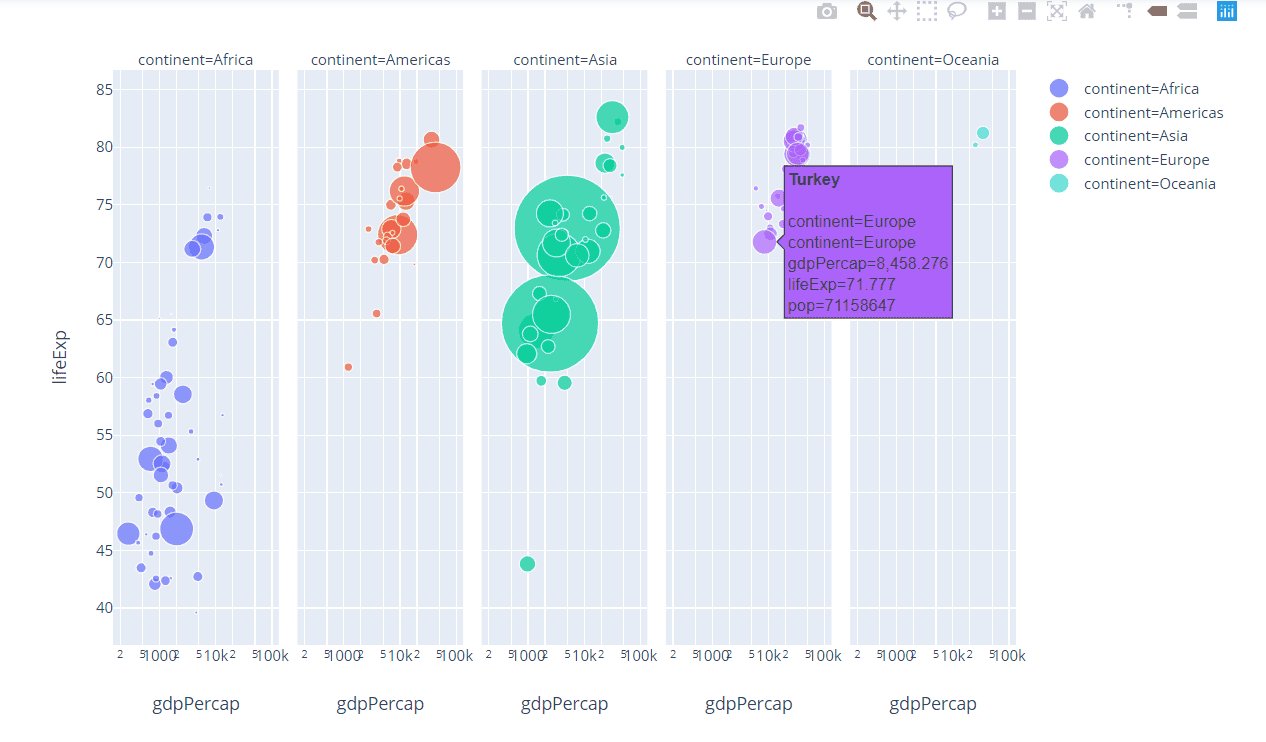

px.scatter(gapminder2007, x='gdpPercap', y='lifeExp',color='continent',size='pop',size_max=60,hover_name='country',facet_col ='continent',log_x=True)

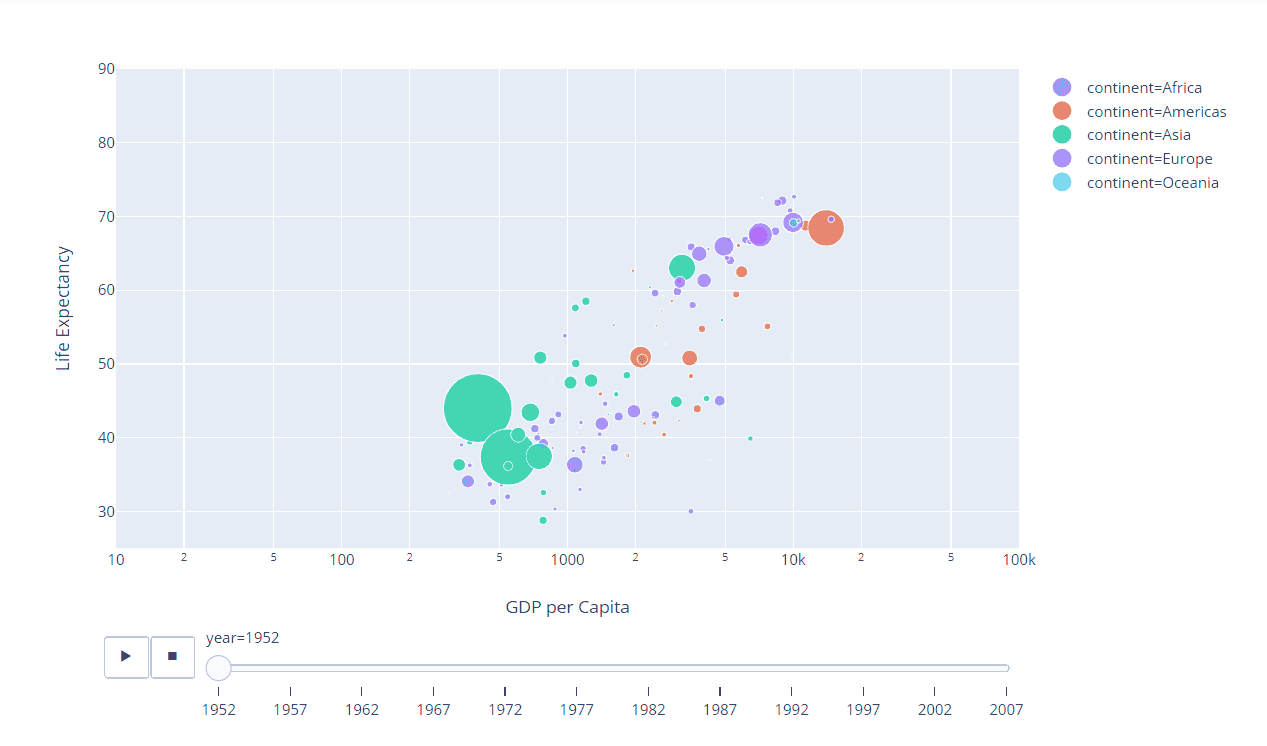

px.scatter(gapminder, x='gdpPercap', y='lifeExp',            color='continent', size='pop',            size_max=60, hover_name='country',          animation_frame='year', animation_group='country',          log_x=True, range_x=[10,100000],          range_y=[25,90], labels=dict(pop='Population', gdpPercap='GDP per Capita', lifeExp='Life Expectancy'))

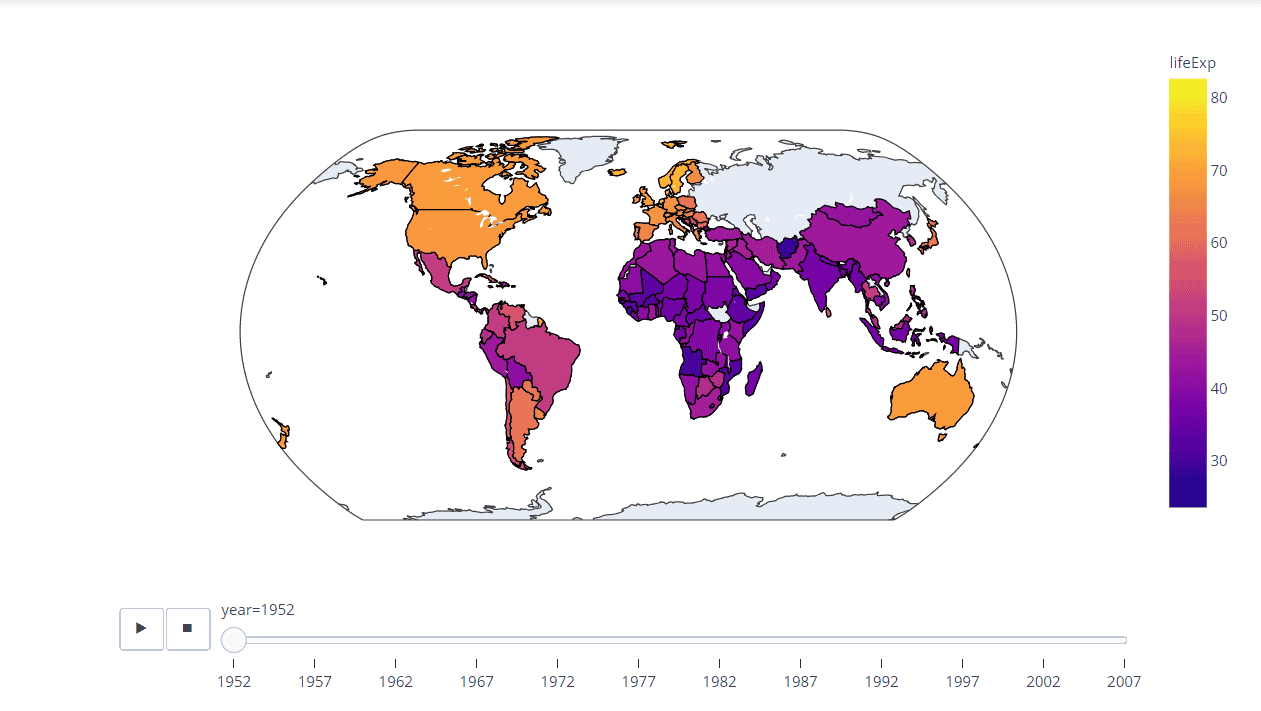

px.choropleth(gapminder, locations='iso_alpha', color='lifeExp',             hover_name='country', animation_frame='year',             color_continuous_scale=px.colors.sequential.Plasma,             projection='natural earth')

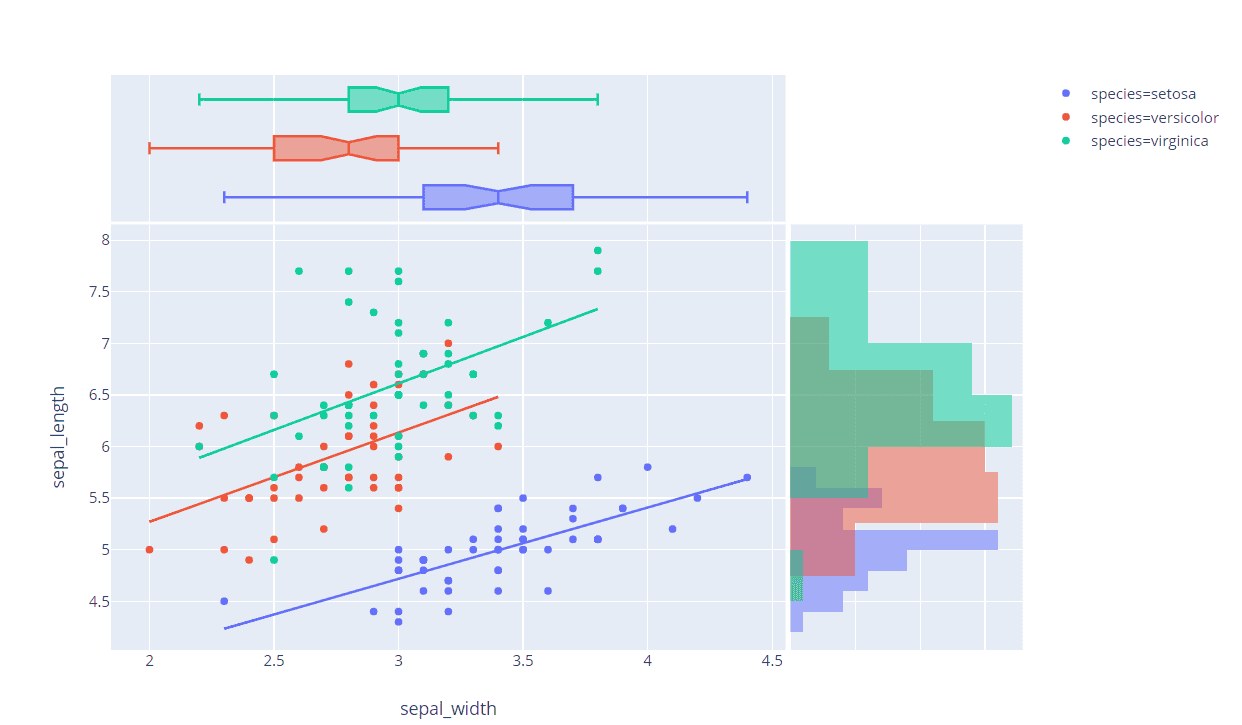

iris = px.data.iris()px.scatter(iris, x='sepal_width', y='sepal_length',            color='species', marginal_y='histogram',          marginal_x='box', trendline='ols')

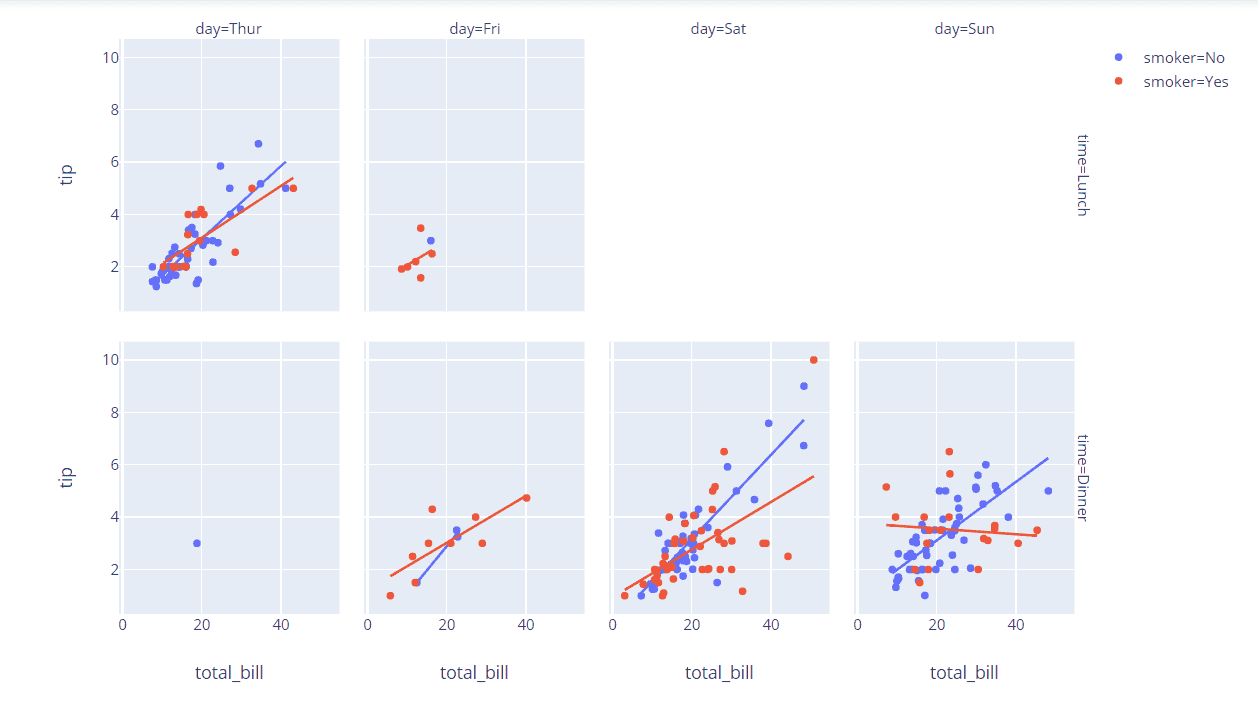

tips = px.data.tips()px.scatter(tips, x='total_bill', y='tip',facet_row='time',          facet_col='day',color='smoker',trendline='ols',          category_orders={'day':['Thur', 'Fri', 'Sat', 'Sun'], 'time':['Lunch', 'Dinner']})

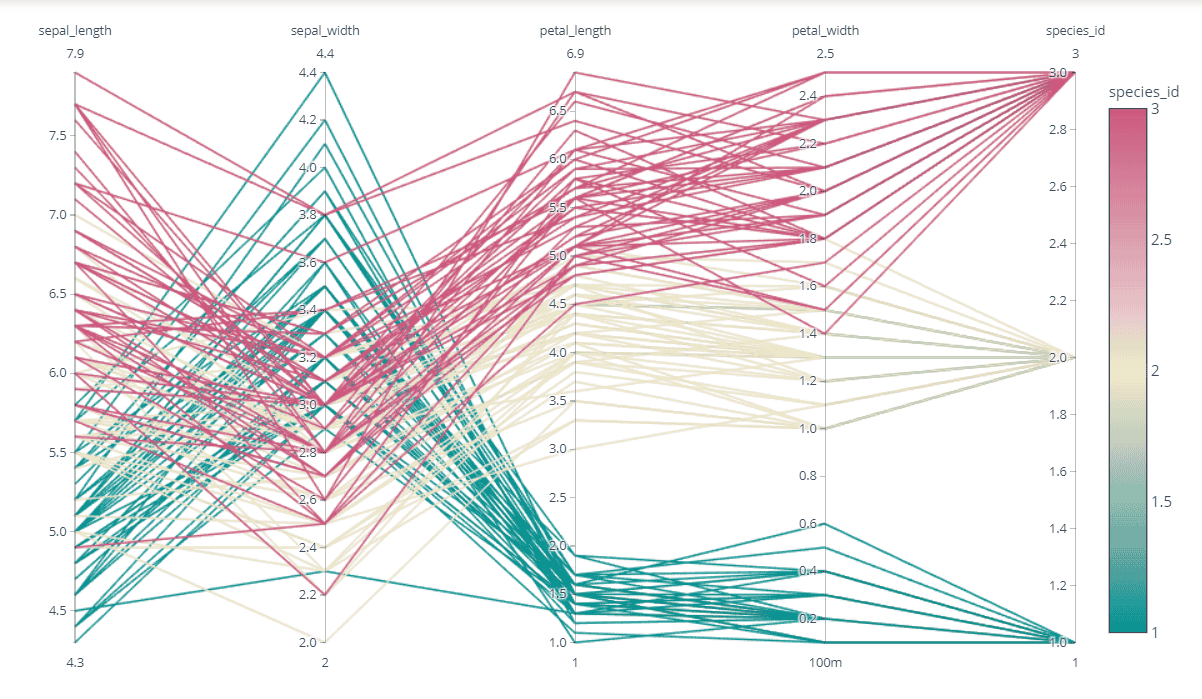

px.parallel_coordinates(iris, color='species_id',                       color_continuous_scale=px.colors.diverging.Tealrose,                       color_continuous_midpoint=2)

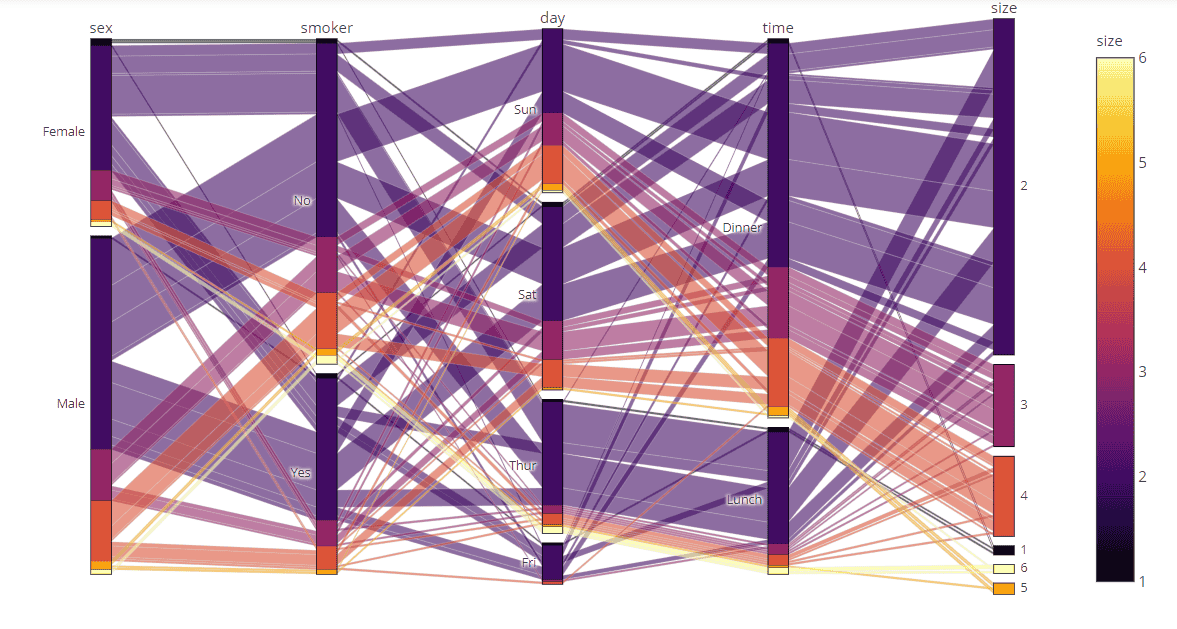

px.parallel_categories(tips, color="size", color_continuous_scale=px.colors.sequential.Inferno)

px.density_contour(iris, x="sepal_width", y="sepal_length")

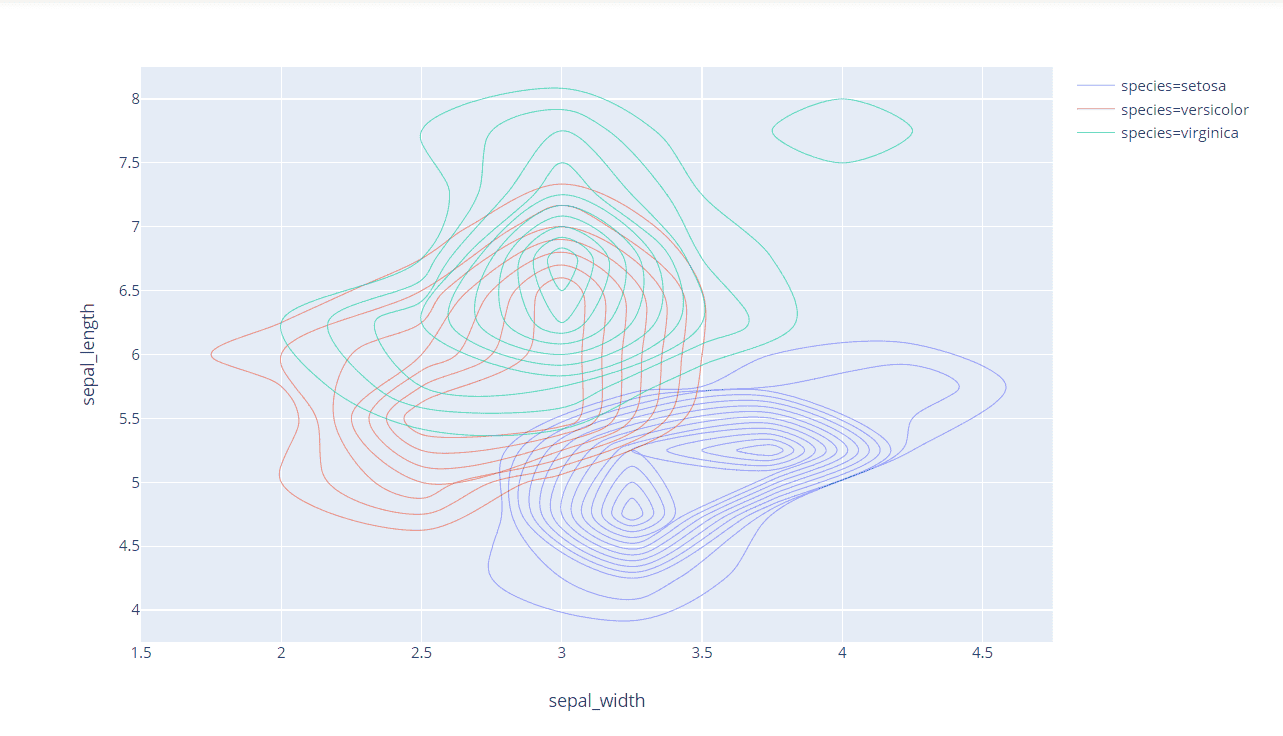

px.density_contour(iris, x="sepal_width", y="sepal_length", color="species")

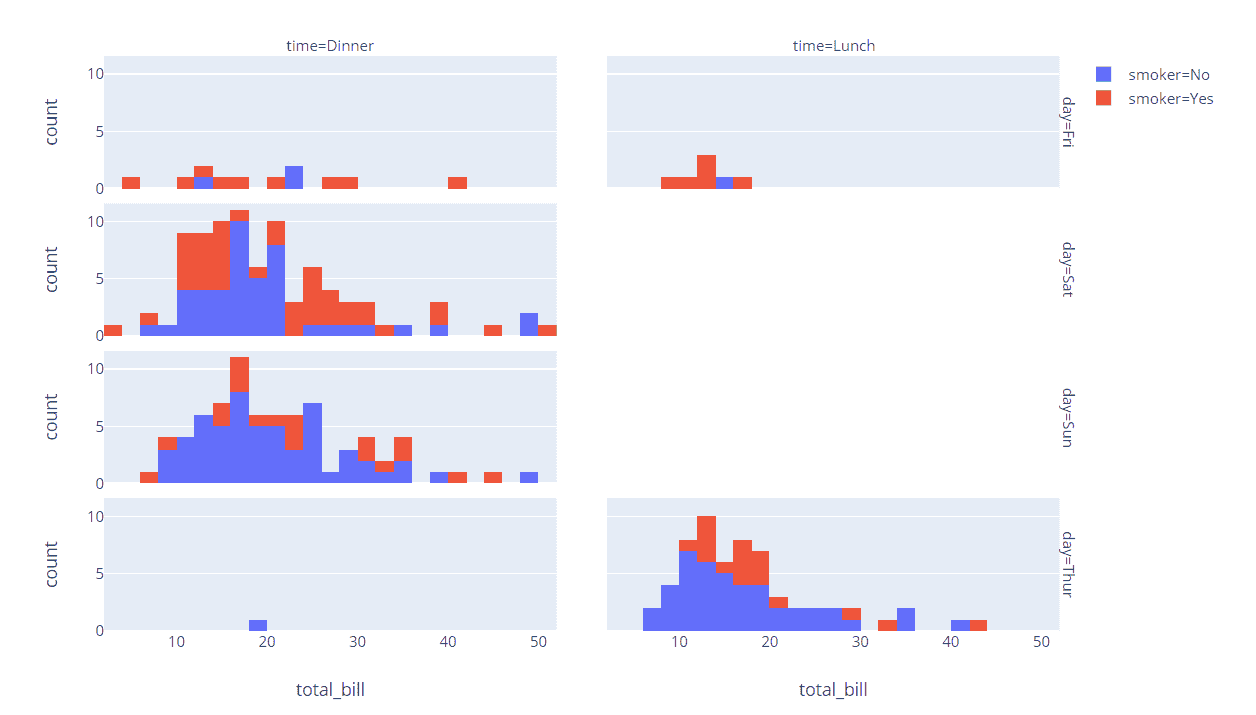

px.histogram(tips, x="total_bill", color="smoker", facet_row="day", facet_col="time")

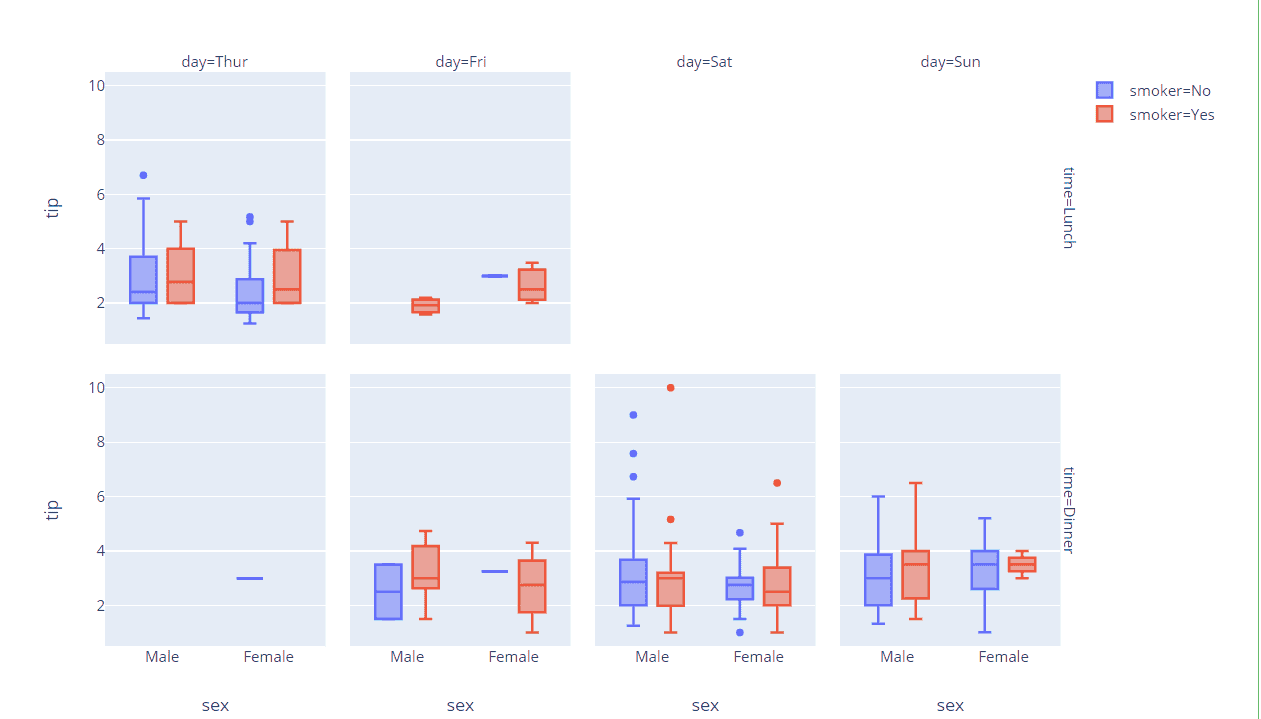

px.box(tips, y="tip", x="sex", color="smoker", facet_col="day", facet_row="time",        category_orders={"day": ["Thur", "Fri", "Sat", "Sun"], "time": ["Lunch", "Dinner"]})

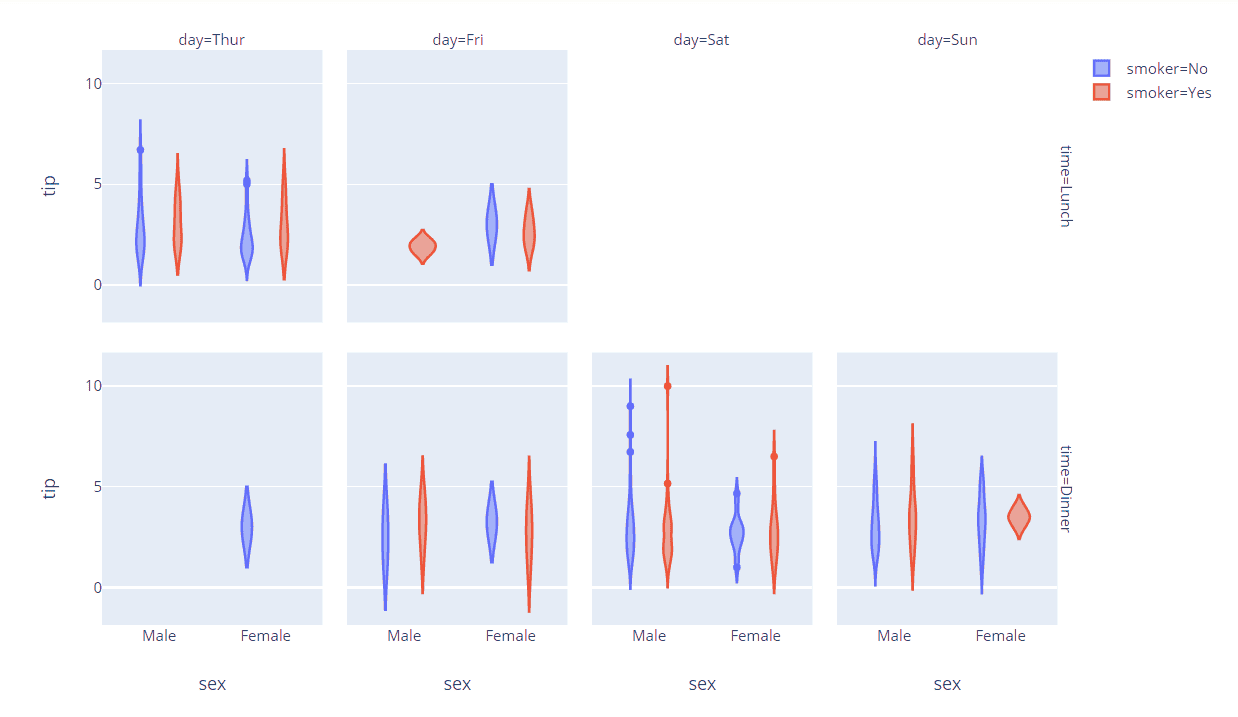

px.violin(tips, y="tip", x="sex", color="smoker", facet_col="day", facet_row="time",         category_orders={"day": ["Thur", "Fri", "Sat", "Sun"], "time": ["Lunch", "Dinner"]})

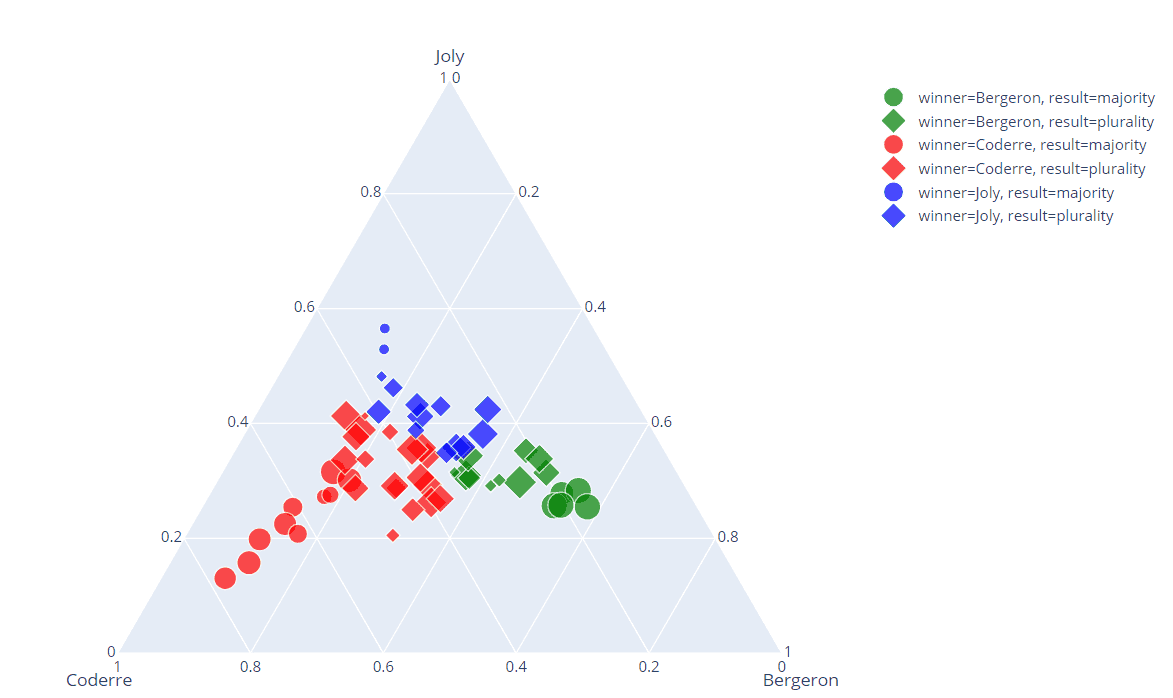

election = px.data.election()px.scatter_ternary(election, a="Joly", b="Coderre", c="Bergeron", color="winner", size="total", hover_name="district",                   symbol="result",                    size_max=15, color_discrete_map = {"Joly": "blue", "Bergeron": "green", "Coderre":"red"}                  )

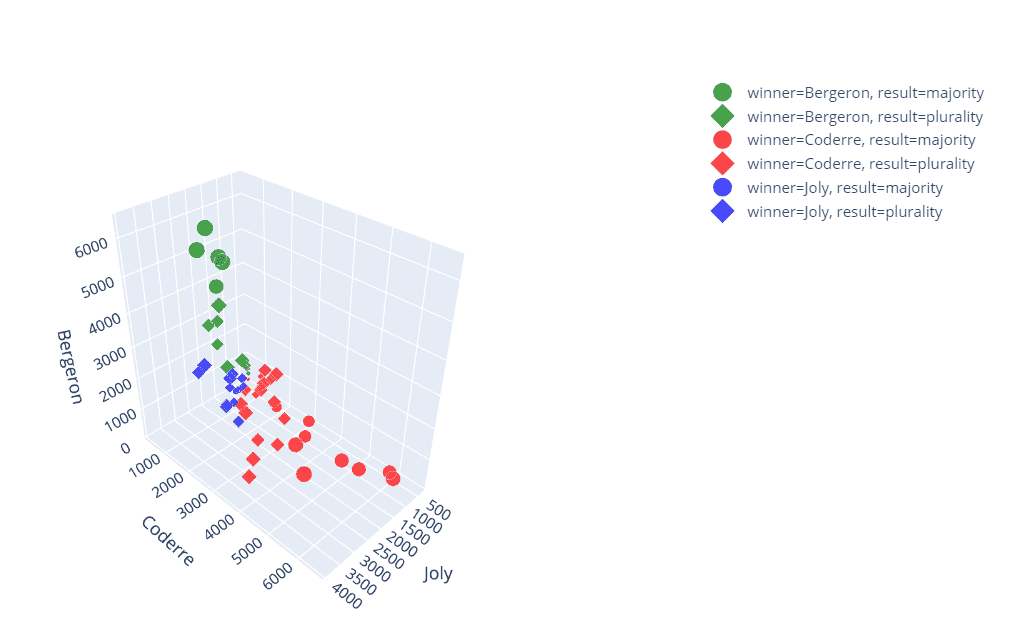

px.scatter_3d(election, x="Joly", y="Coderre", z="Bergeron", color="winner", size="total", hover_name="district",                  symbol="result", color_discrete_map = {"Joly": "blue", "Bergeron": "green", "Coderre":"red"})

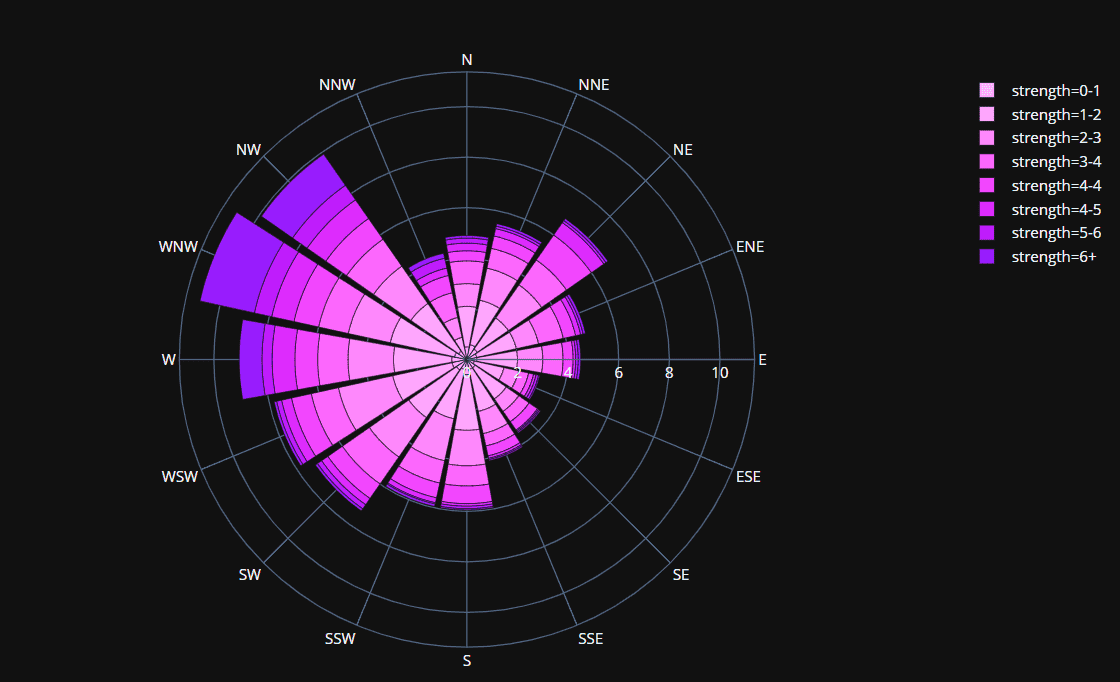

px.bar_polar(wind, r="value", theta="direction", color="strength", template="plotly_dark",            color_discrete_sequence= px.colors.sequential.Plotly[-2::-1])

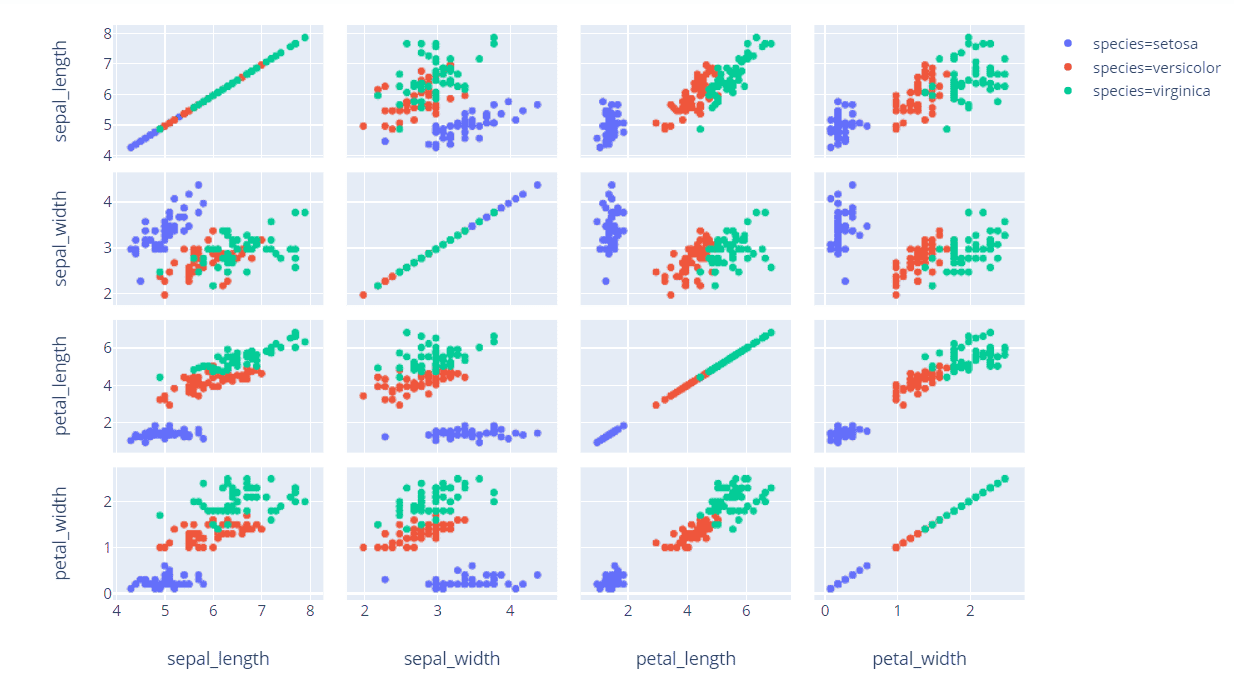

px.scatter_matrix(iris, dimensions=["sepal_width", "sepal_length", "petal_width", "petal_length"], color="species")

px.parallel_coordinates(iris, color='species_id', color_continuous_scale=['red','green', 'blue'])

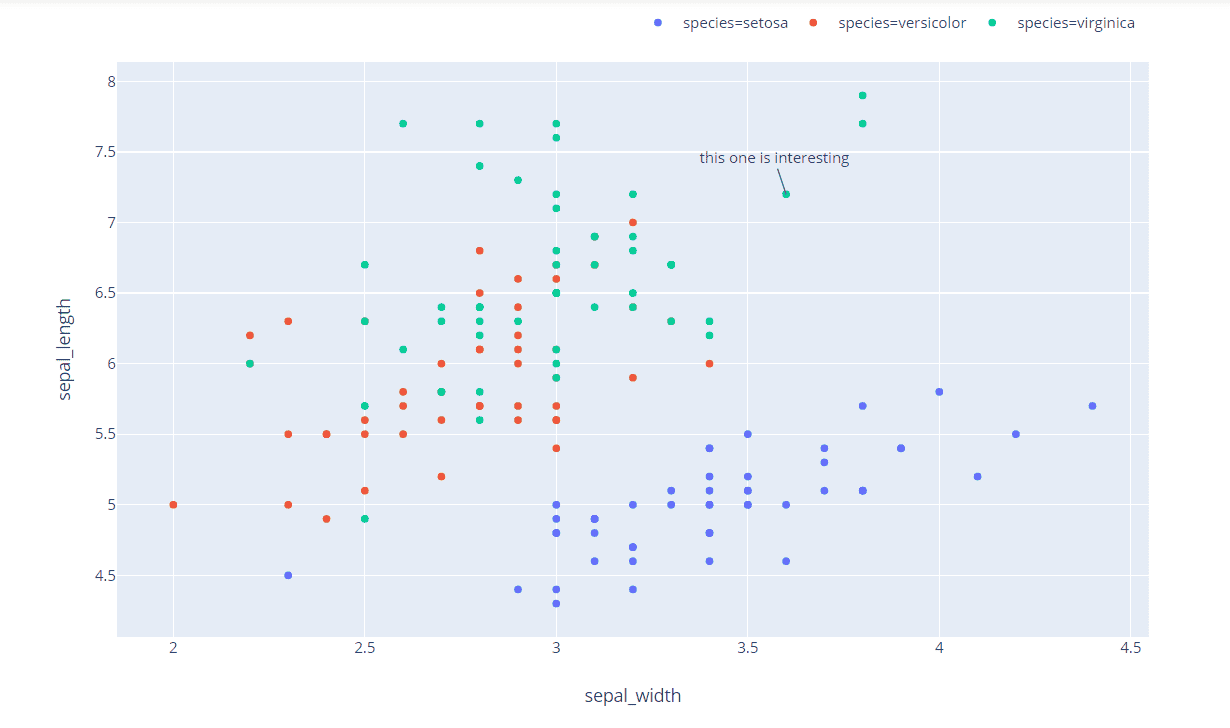

import plotly_express as pxfig = px.scatter(px.data.iris(), x='sepal_width', y='sepal_length', color='species')import plotly.graph_objs as gofig.update(layout=dict(legend=dict(orientation='h',y=1.1,x=0.5),                      annotations=[go.layout.Annotation(text='this one is interesting', x=3.6, y=7.2)]))
